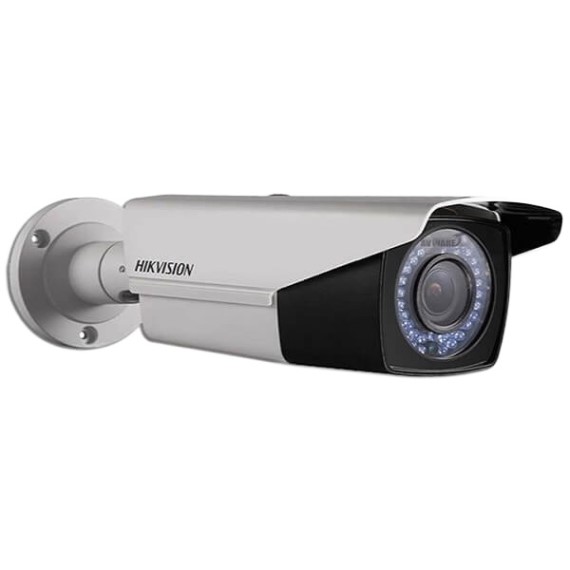

Camera HD-TVI hồng ngoại 2.0 Megapixel HIKVISION DS-2CE16D0T-VFIR3E
Camera HD-TVI hồng ngoại 2.0 Megapixel HIKVISION DS-2CE16D0T-VFIR3E
| Model | DS-2CE16D0T-VFIR3E | |
| Camera | ||
| Image Sensor | 2.0 megapixel progressive scan CMOS | |
| Signal System | PAL/NTSC | |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps | |
| Effective Pixels | 1920 (H) × 1080 (V) | |
| Min. illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s | |
| Lens | 2.8 mm to 12 mm | |
| Horizontal Field of View | 105.2° to 32.8 ° | |
| Lens Mount | Φ14 | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° | |
| Synchronization | Internal synchronization | |
| S/N Ratio | > 62 dB | |
| Interface | ||
| Video Output | 1 HD analog output | |
| General | ||
| Operating Conditions | -40 °C to 60 °C, Humidity 90% or less (non-condensation) | |
| Power Supply | 12 VDC ±15%/PoC.at | |
| Power Consumption | Max.6.5 W | |
| Protection Level | IP66 | |
| IR Range | Up to 40 m | |
| Dimensions | 92 × 89 × 269.6 mm | |
| Weight | Approx. 900 g | |
